This product significantly reduces vibration and noise in pipeline systems, fundamentally solving problems such as interface displacement, axial expansion and contraction, and misalignment in various pipelines.
Depending on the material, it can be manufactured into various types, including acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, and heat-resistant varieties, adaptable to various media and environments.
The material is polar rubber, offering excellent sealing performance, lightweight, easy installation and maintenance, and a long service life. However, avoid contact with sharp metal instruments to prevent puncturing the sphere.
For overhead applications, a flexible support can be used. During installation, bolts should be tightened diagonally.
If the pipeline pressure is too high, limit bolts should be used to connect the flanges at both ends.
The flange connection standard adopts GB/T9115.1-2000. If other standards are used, please specify separately. This product is available in working pressure ratings of 1.0MPa, 1.6MPa, and 2.5MPa.
Flexible rubber joints are normally suitable for ordinary water at temperatures of 0-60°C. For special media such as oil, acids, alkalis, high temperatures, and other corrosive or hard materials, rubber joints made of appropriate special materials should be selected. Blindly using or applying interchangeably is not recommended.

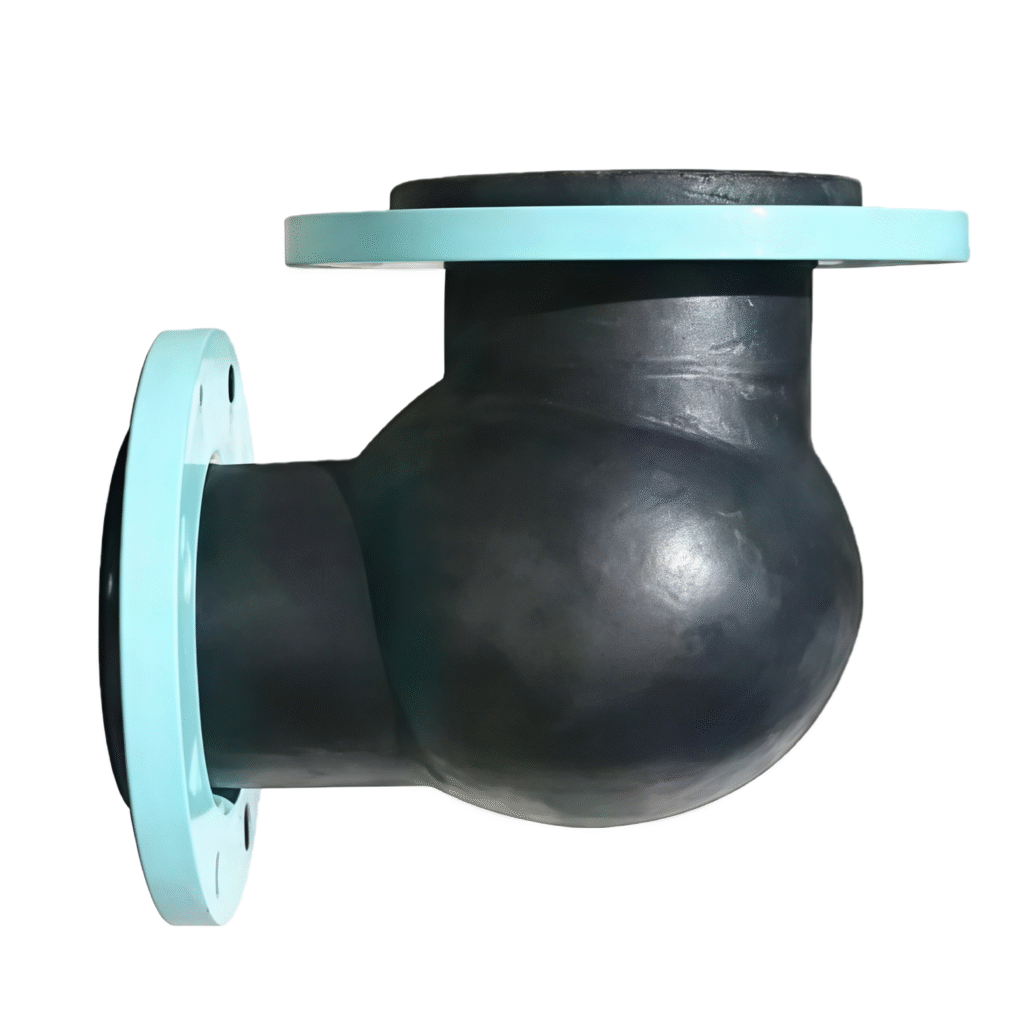

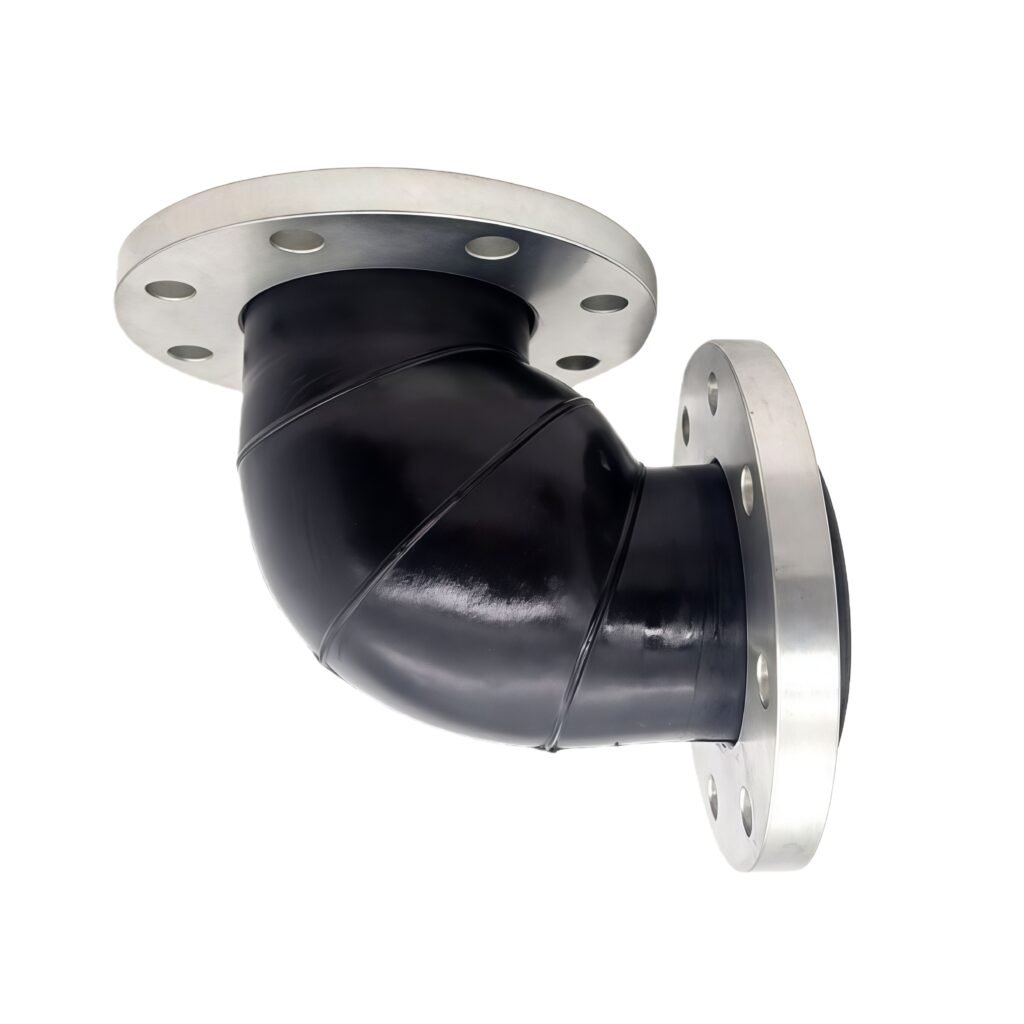

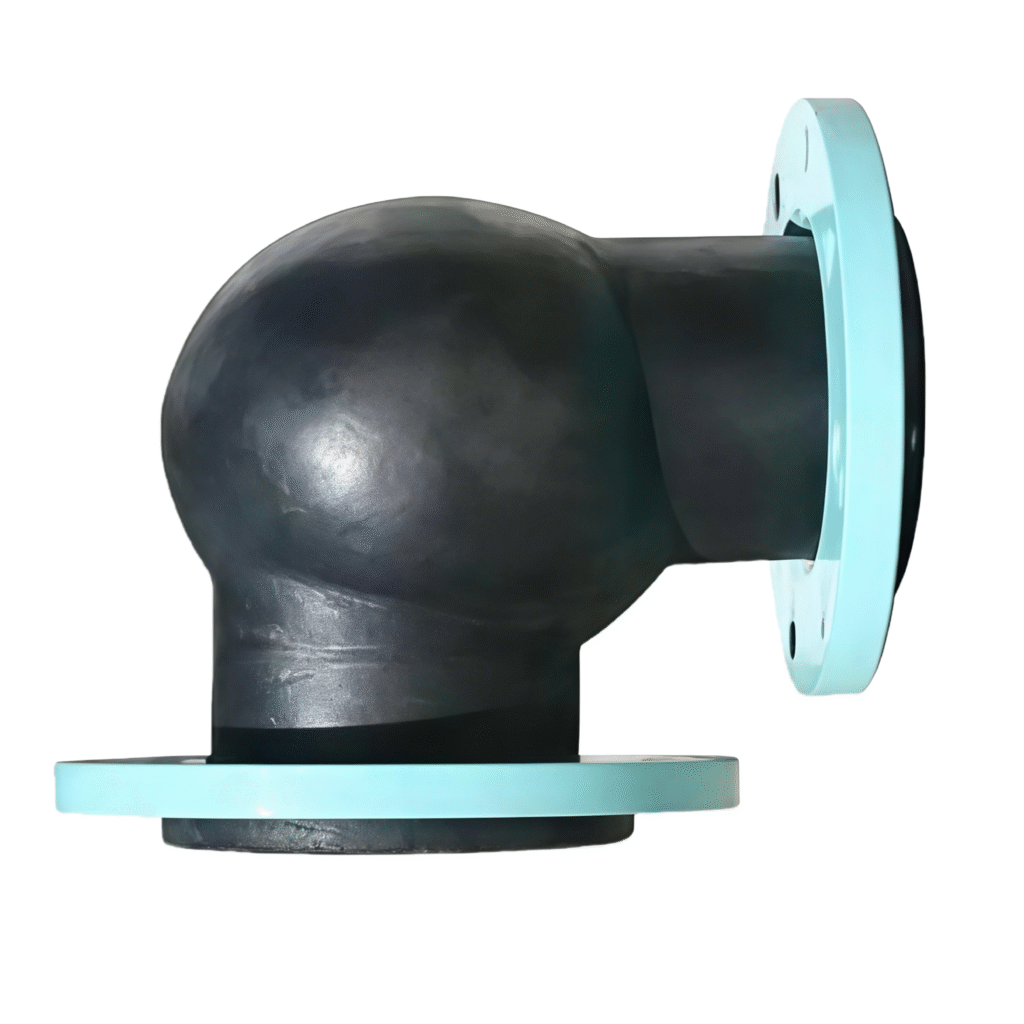

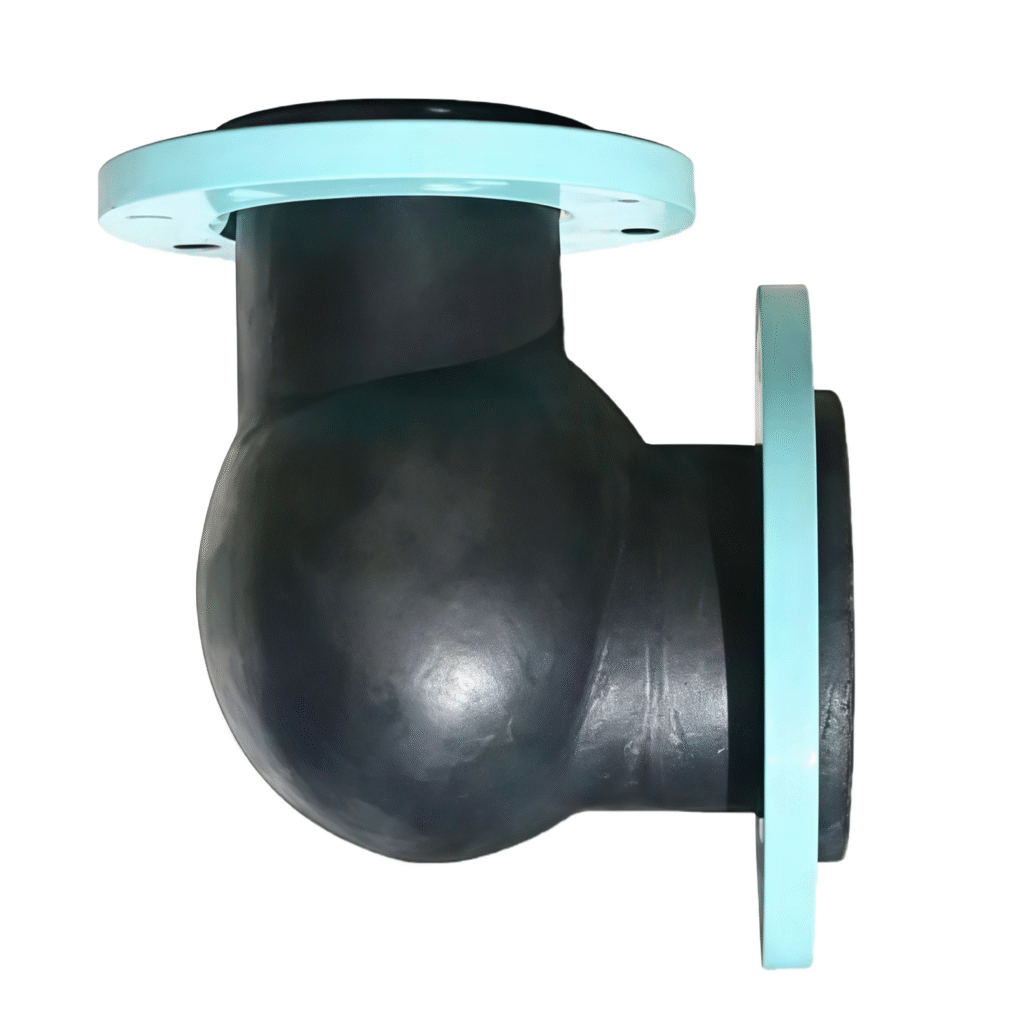

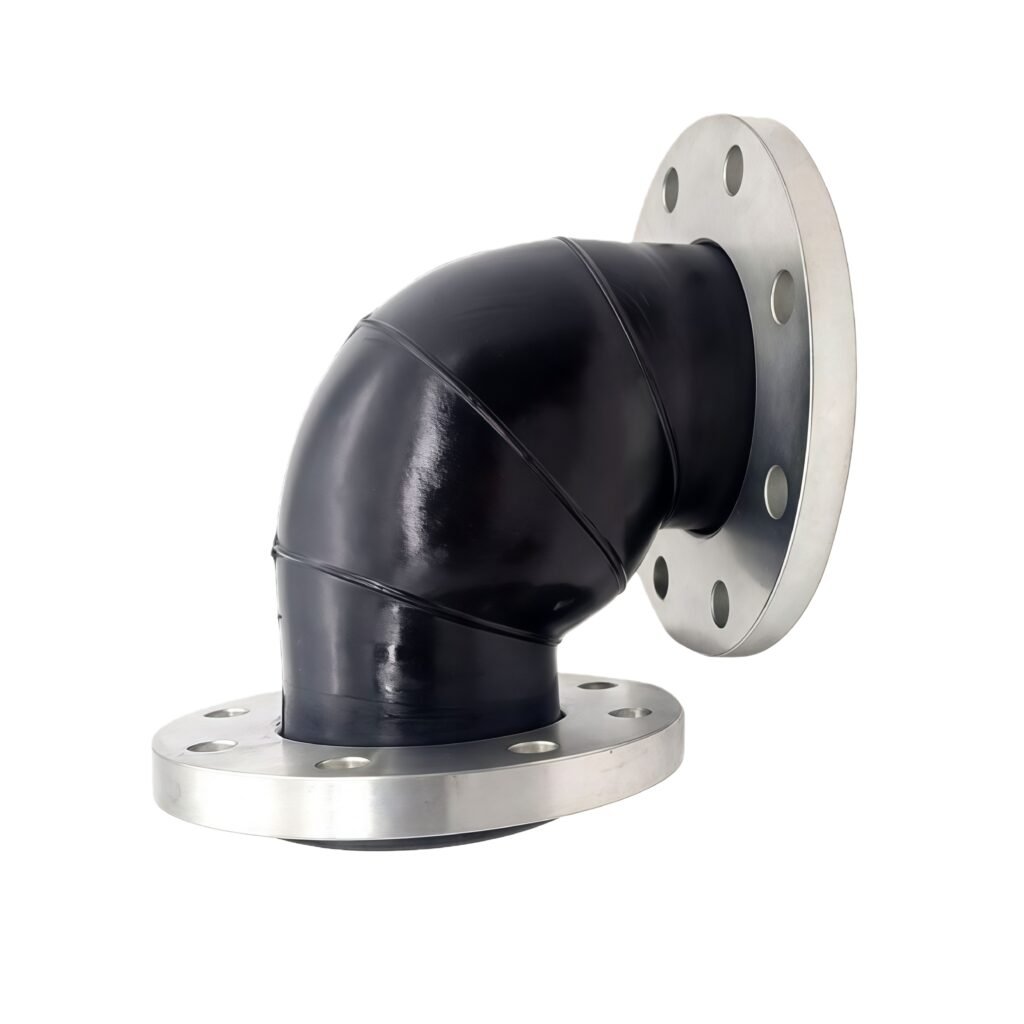

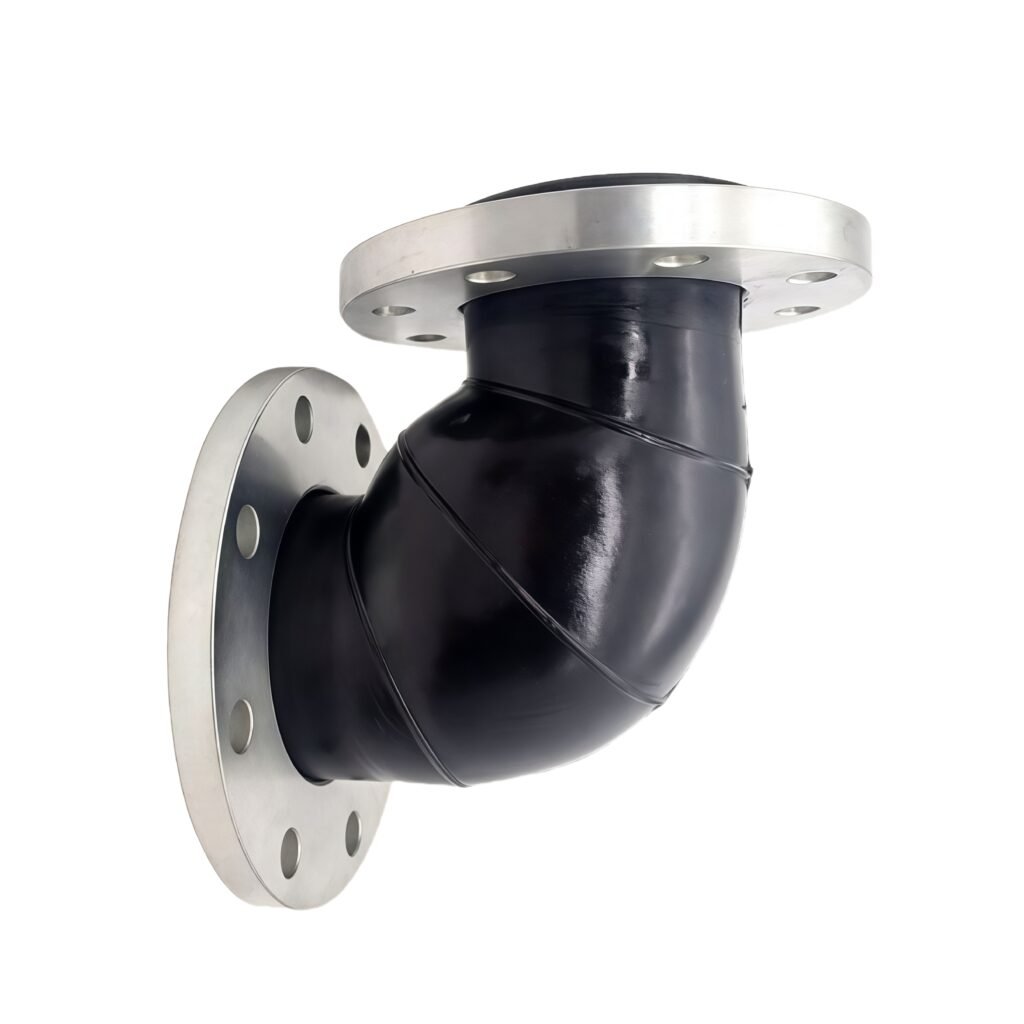

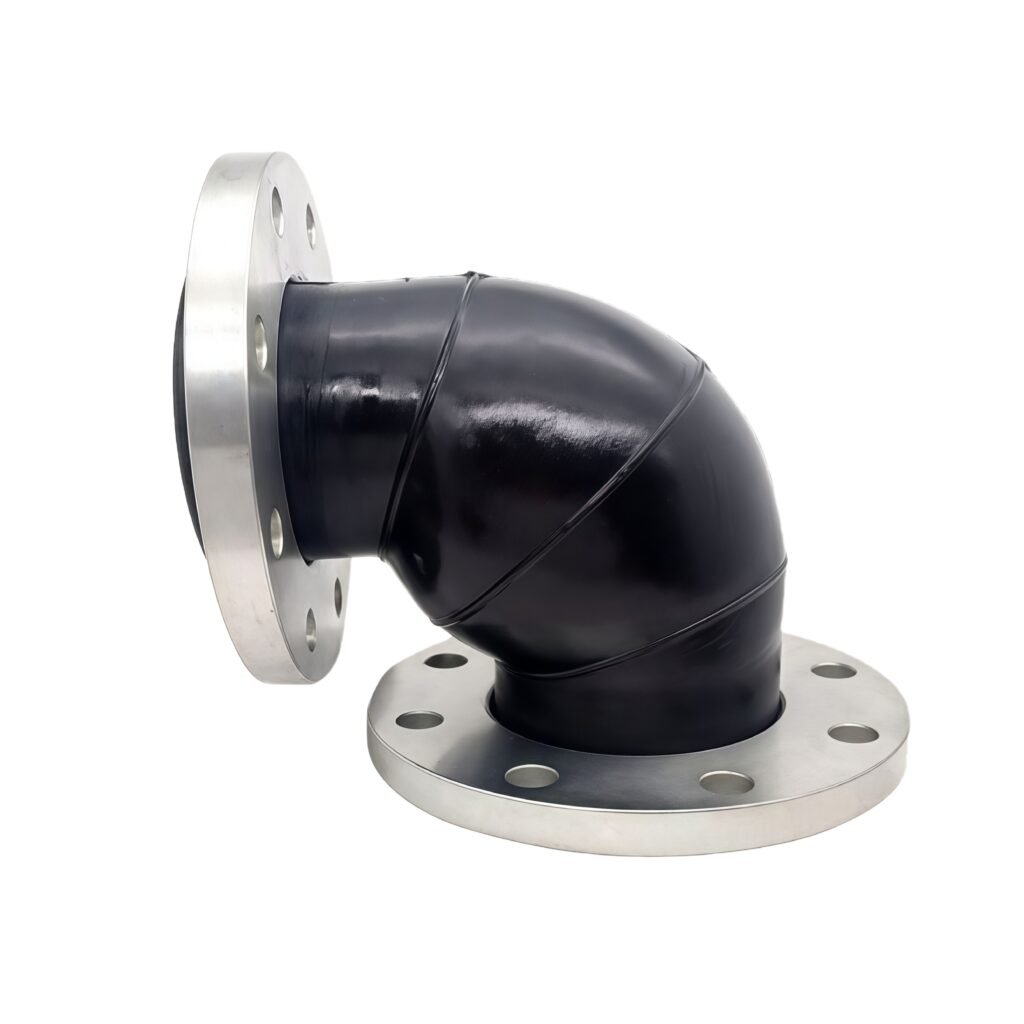

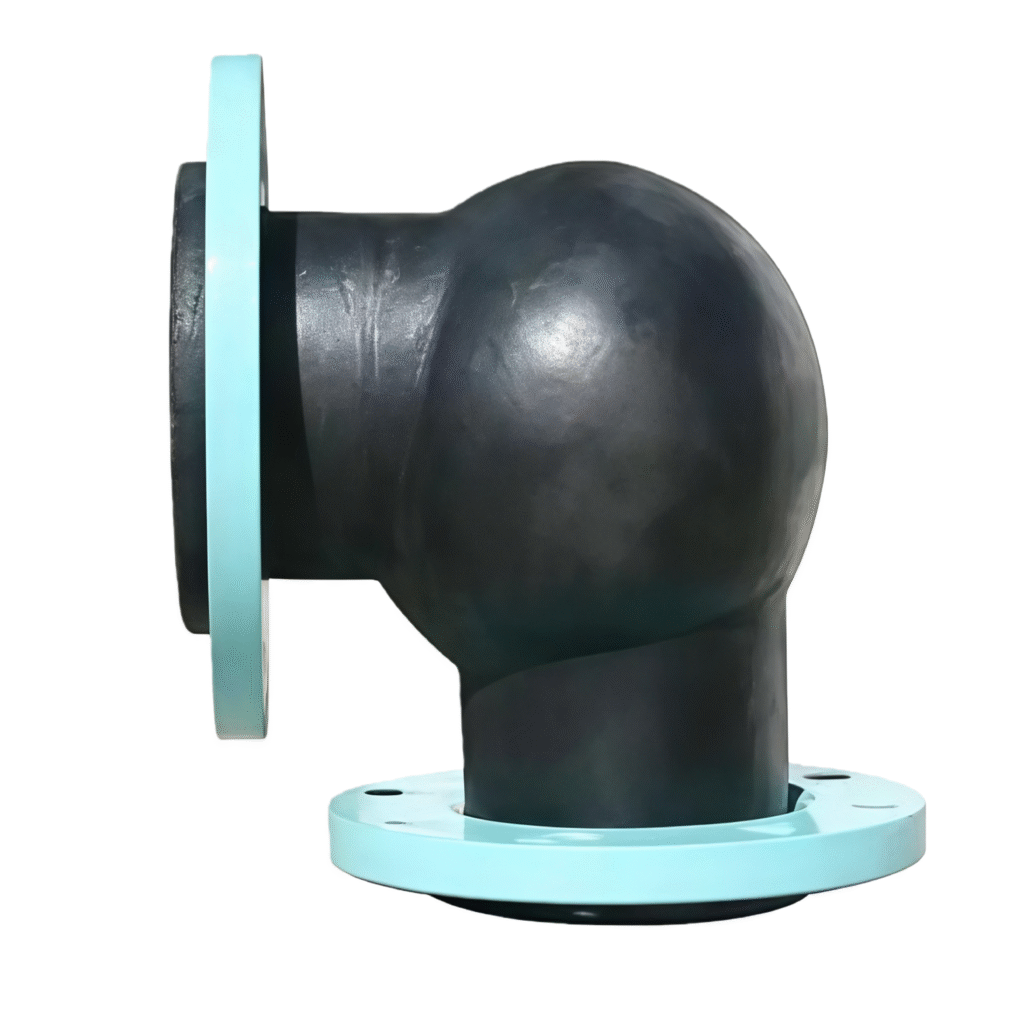

Performance Characteristics: When installing a 90-degree rubber elbow, first align the joint flange with the corresponding flange hole position, then pass the fixing screws through the flange hole and tighten the nuts with a wrench. It can be widely used for flexible connections in various pipeline systems in industries such as building water supply and drainage, HVAC, metallurgy, chemical, papermaking, sanitation, shipbuilding, fire protection, and pharmaceuticals. Gongyi Mingcheng Pipeline specializes in the production of 90-degree rubber elbows. We provide free application solutions, pricing information, detailed information on various operating conditions, and quotations for 90-degree rubber elbows. Mingcheng Pipeline products strictly adhere to international standards and raw material quality requirements, eliminating any possibility of cutting corners. Our environmental standards require not only new materials but also environmentally friendly new materials.
