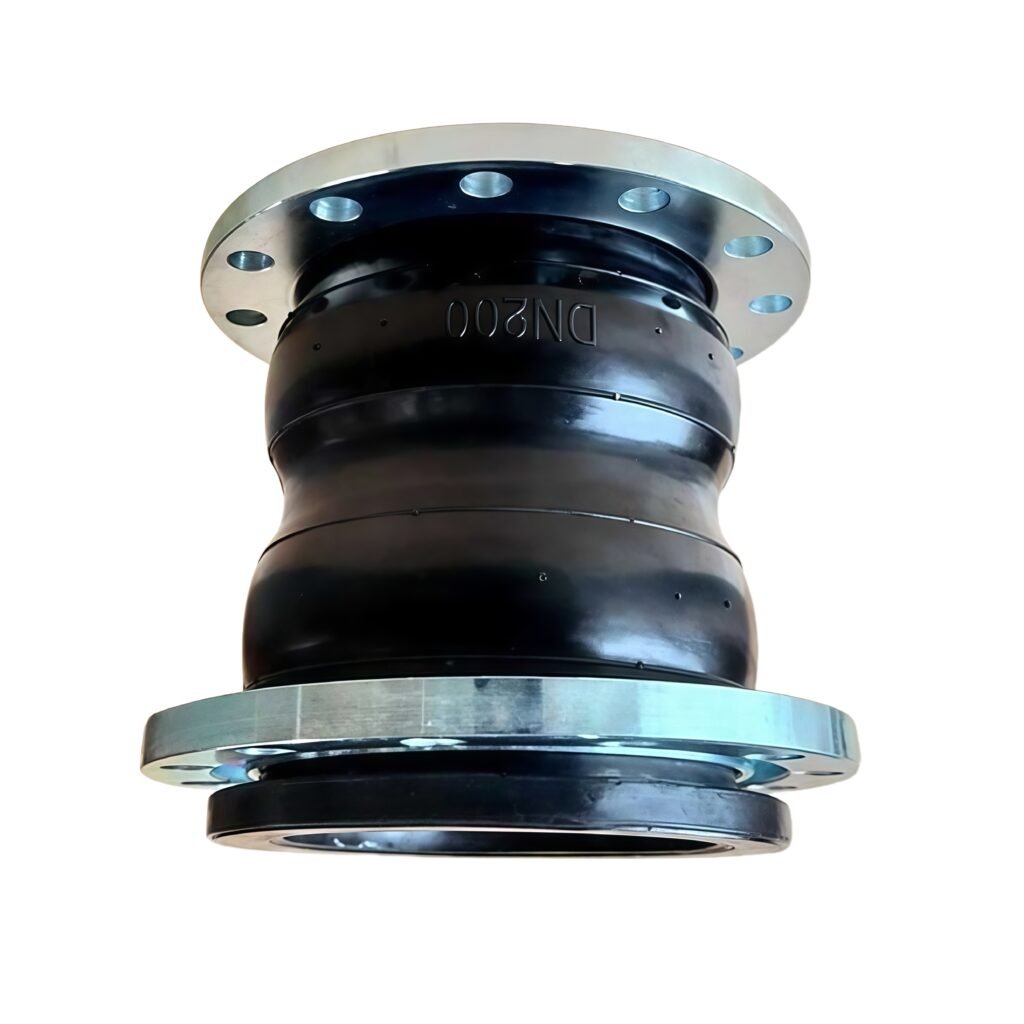

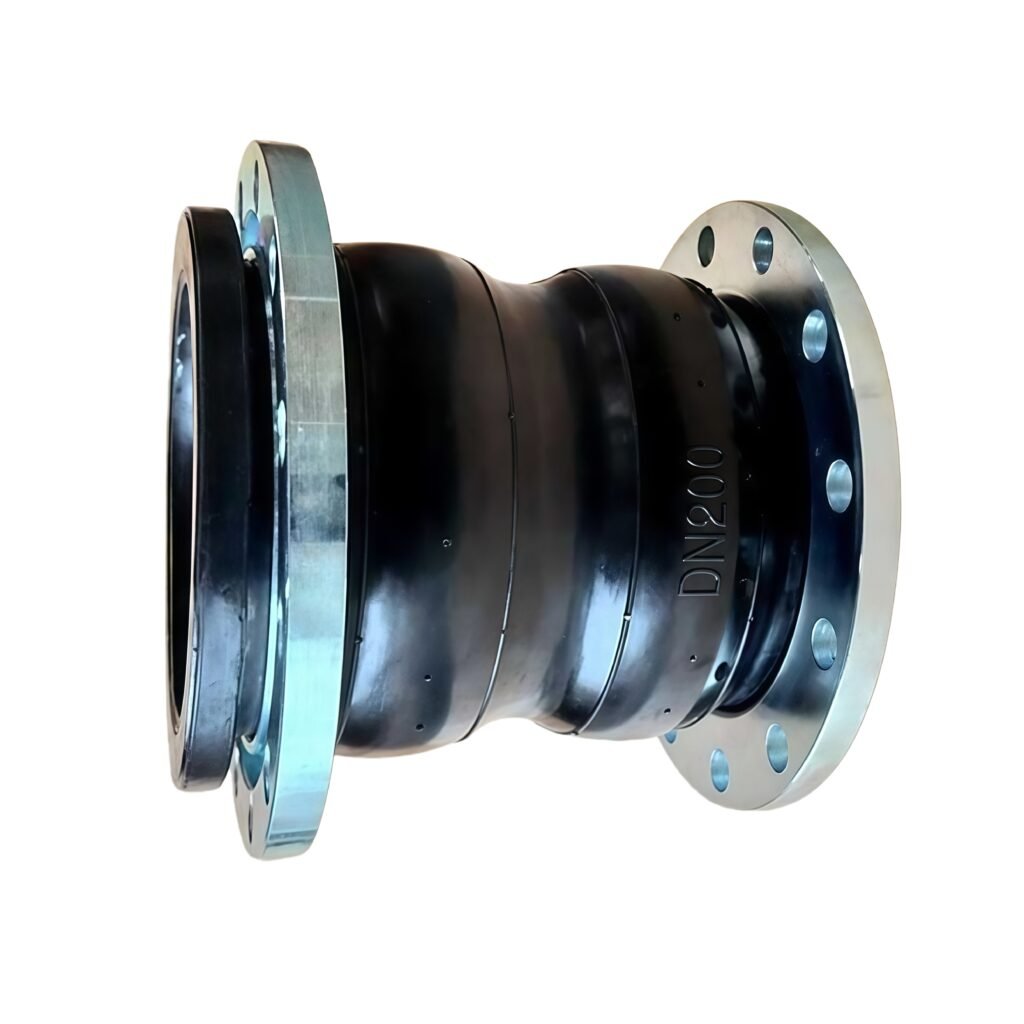

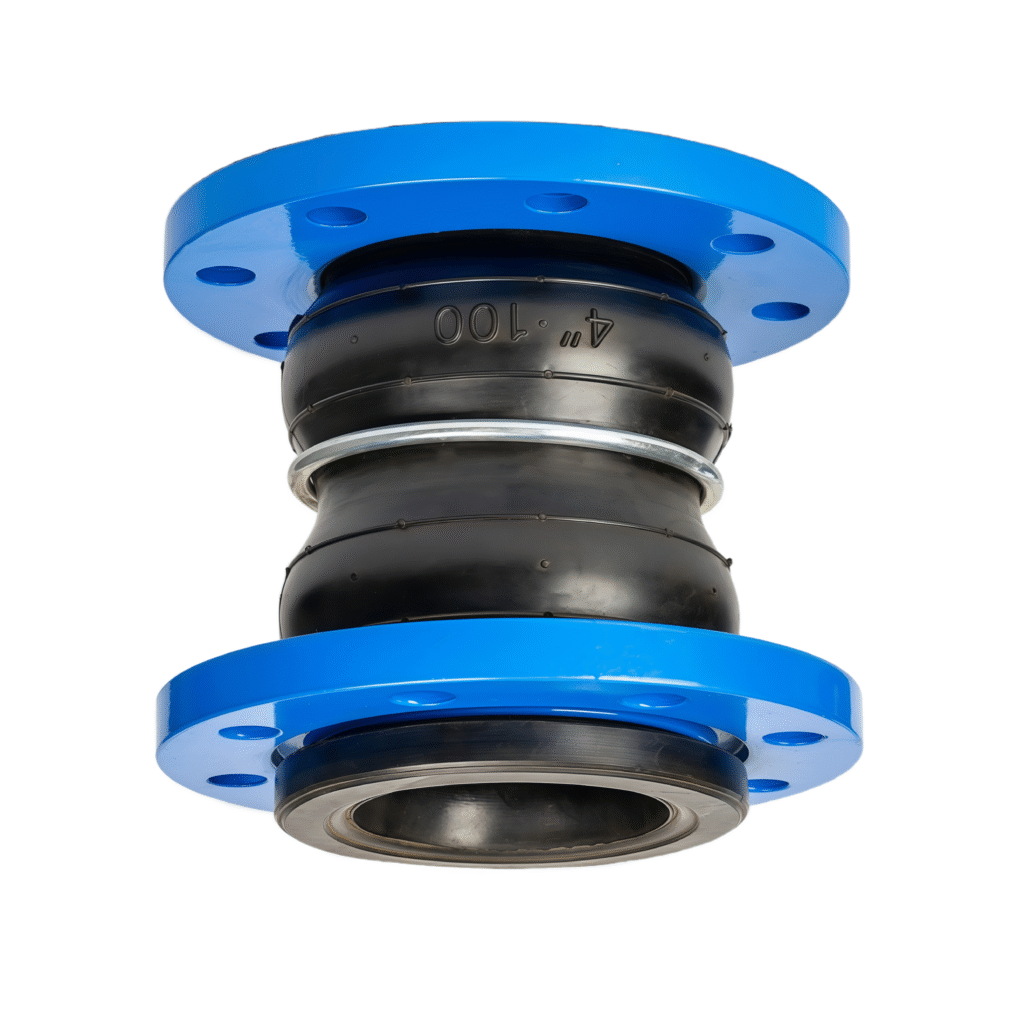

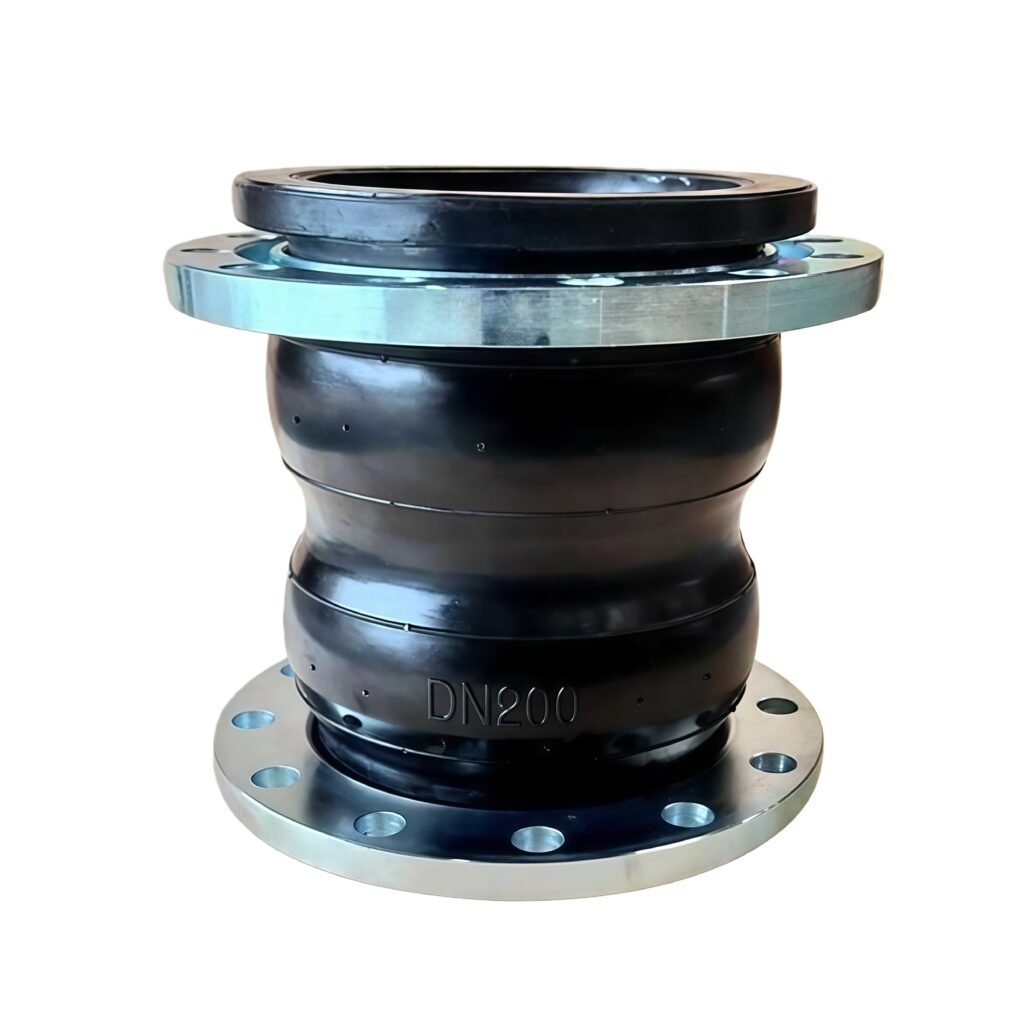

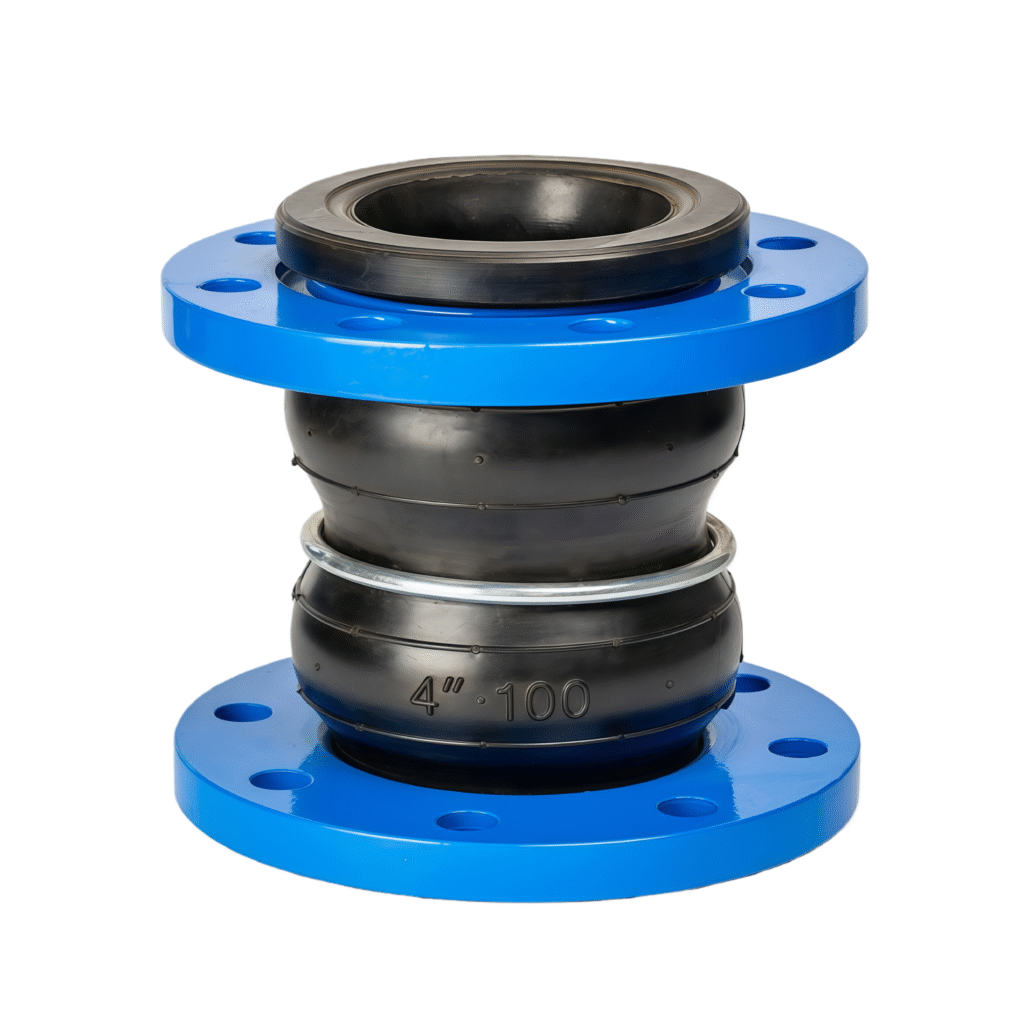

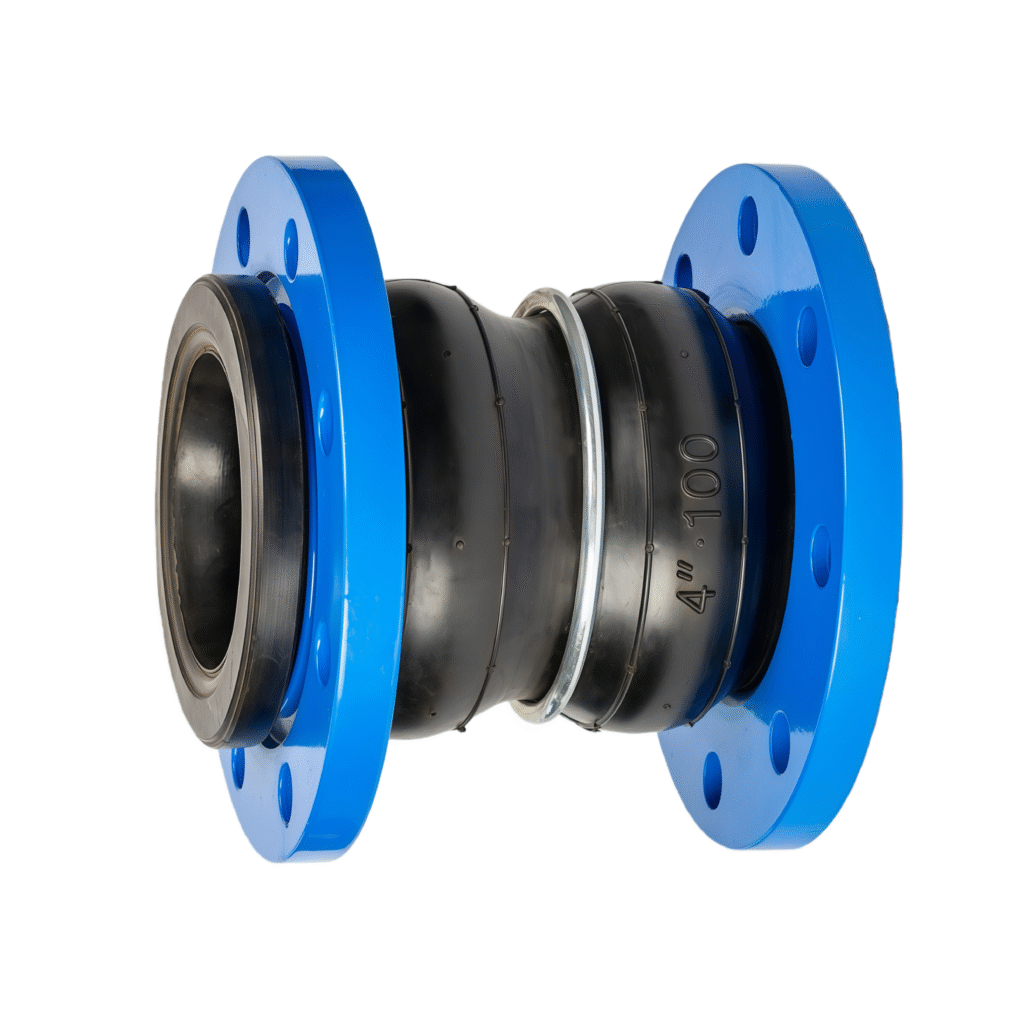

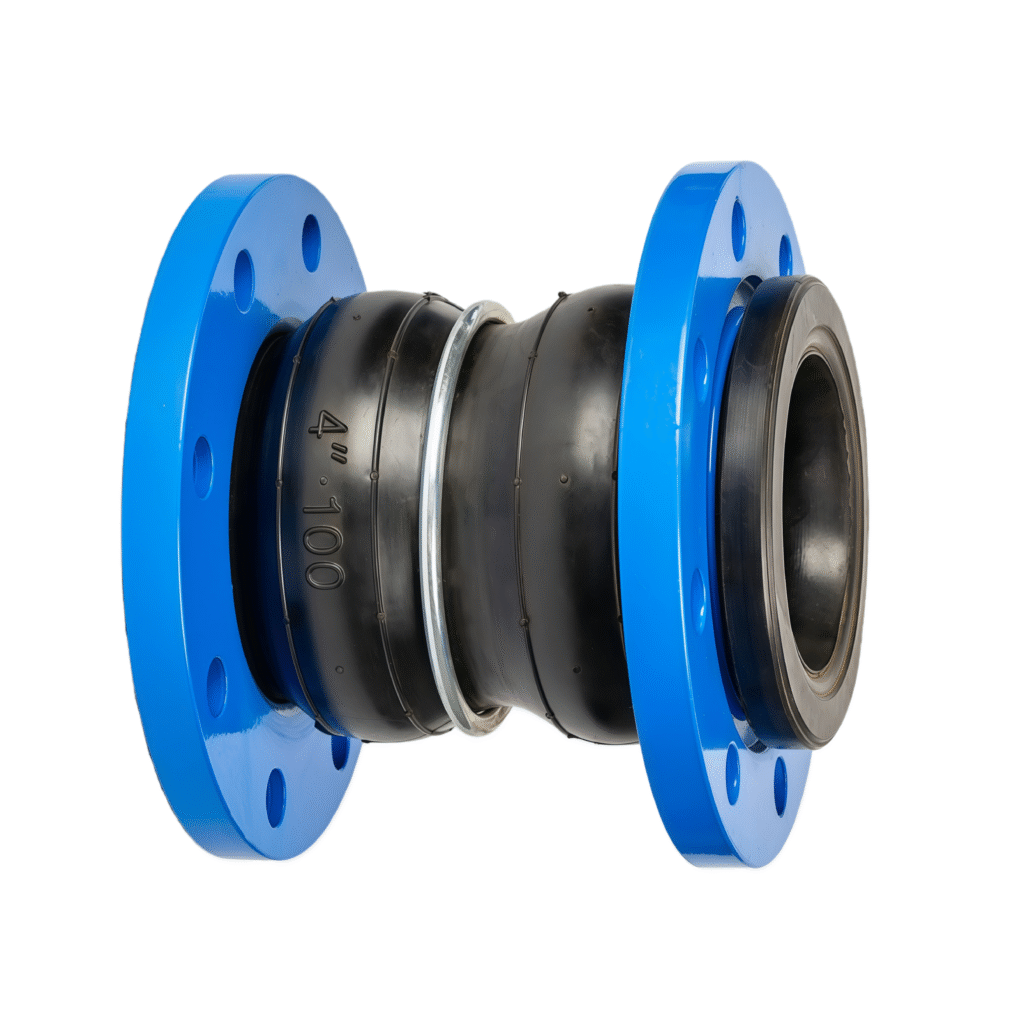

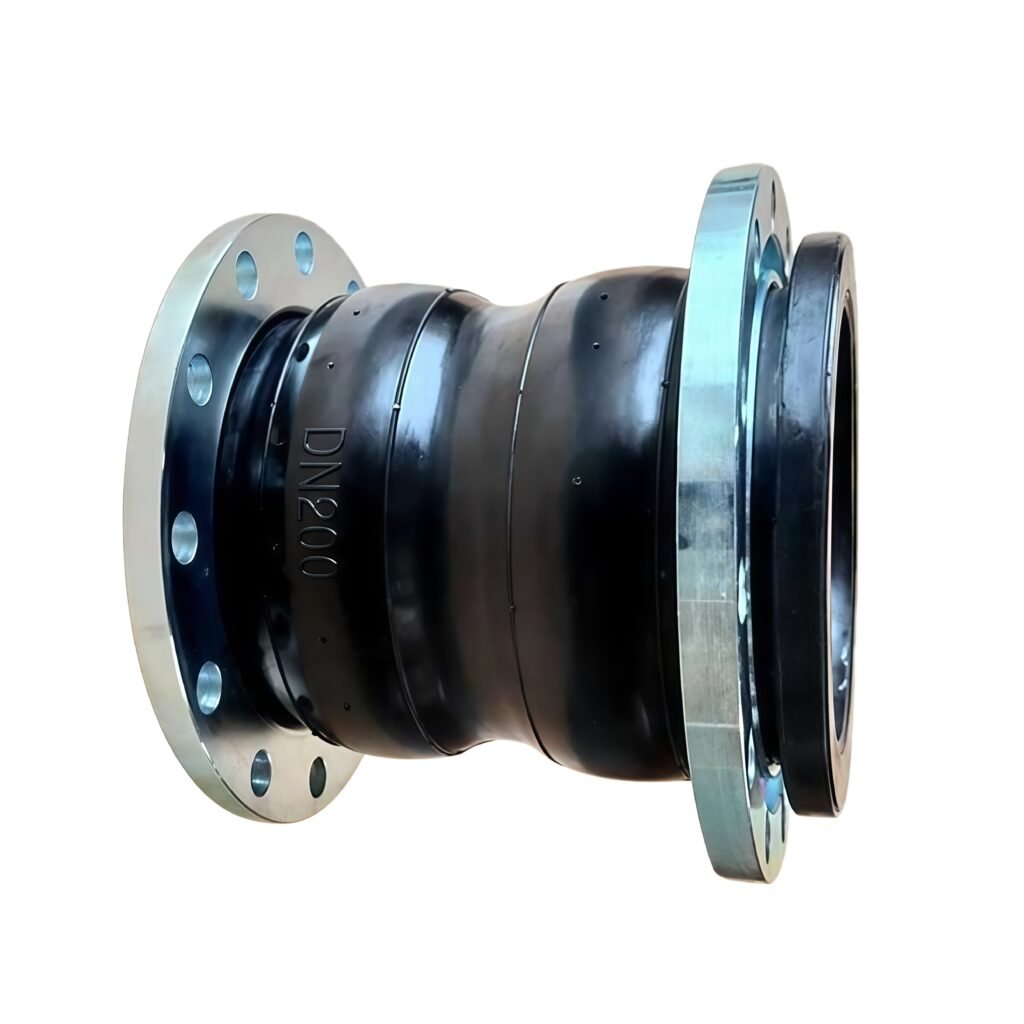

Double-sphere flexible rubber joint

sizeDN40~DN600
pressurePN6~PN40
temperature-15 ~ 80℃
Flange StandardDIN, ANSI, JIS etc
Flange materialStainless Steel 304, 316, 321 etc
rubber materialNR, NBR, CR, EPDM, PTFE etc.

Details Overview

Double sphere rubber expansion joint with NBR rubber features two spherical rubber bellows interconnected by a metal flange or core. The bellows are made of high-quality NBR rubber, which is known for its excellent oil and fuel resistance, as well as its ability to withstand moderate temperatures and pressures. The metal flange or core provides structural support and ensures a secure connection to the piping system.

Product Specifications

[table id=1 /]

Applicable Environment

[table id=13 /]

Technical parameters

[table id=14 /]
